Ruby Stylus Tungsten Carbide Stem

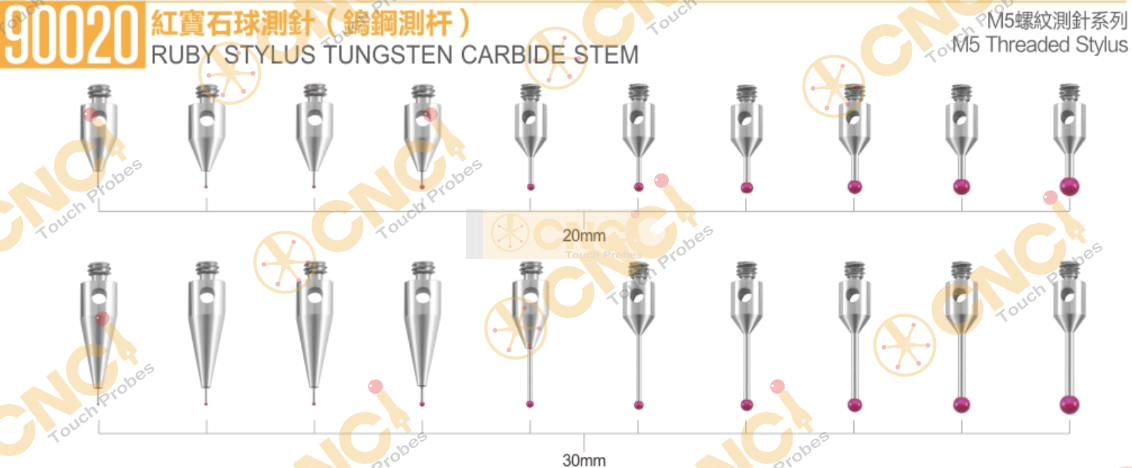

Ruby Stylus Tungsten Carbide Stem(图1)


Thread Size Ball Dia. Overall Length Stem Dia. Effective Length Order No. Model


















M5
0.3









20
0.2 3.0 90020-03-02-5 YK-A-5003-5201
0.5 0.4 4.0 90020-05-20-5 YK-A-5003-5202
0.7 0.5 5.0 90020-07-20-5 YK-A-5003-5203
1.0 0.7 5.0 90020-10-20-5 YK-A-5003-5204
1.5 1.0 11.0 90020-15-20-5 YK-A-5003-5205
2.0 1.0 11.0 90020-20-20-5 YK-A-5003-5206
2.5 1.5 11.0 90020-25-20-5 YK-A-5003-5207
3.0 2.0 11.0 90020-30-20-5 YK-A-5003-5208
4.0 2.0 11.0 90020-40-20-5 YK-A-5003-5209
5.0 3.0 11.0 90020-50-20-5 YK-A-5003-5210
0.3










30
0.2 3.0 90020-03-30-5 YK-A-5003-5211
0.5 0.4 4.0 90020-05-30-5 YK-A-5003-5212
0.7 0.5 5.0 90020-07-30-5 YK-A-5003-5213
1.0 0.7 5.0 90020-10-30-5 YK-A-5003-5214
1.5 1.0 12.0 90020-15-30-5 YK-A-5003-5215
2.0 1.0 21.0 90020-20-30-5 YK-A-5003-5216
2.5 1.5 21.0 90020-25-30-5 YK-A-5003-5217
3.0 2.0 21.0 90020-30-30-5 YK-A-5003-5218
4.0 2.0 21.0 90020-40-30-5 YK-A-5003-5219
5.0 3.0 21.0 90020-50-30-5 YK-A-5003-5220

Ruby Stylus Tungsten Carbide Stem(图2)



Thread Size Ball Dia. Overall Length Stem Dia. Effective Length Order No. Model


















M5
1.5


40
1.0 20.0 90020-15-40-5 YK-A-5003-5221
2.0 1.0 31.0 90020-20-40-5 YK-A-5003-5222
2.5 1.5 31.0 90020-25-40-5 YK-A-5003-5223
3.0 2.0 31.0 90020-30-40-5 YK-A-5003-5224
0.3
















50
0.2 3.0 90020-03-50-5 YK-A-5003-5225
0.5 0.4 4.0 90020-05-50-5 YK-A-5003-5226
0.7 0.5 5.0 90020-07-50-5 YK-A-5003-5227
1.0 0.7 5.0 90020-10-50-5 YK-A-5003-5228
1.5 1.0 5.0 90020-15-50-5 YK-A-5003-5229
2.0 1.0 41.0 90020-20-50-5-B YK-A-5003-5230
2.0 1.0 5.0 90020-20-50-5-C YK-A-5003-5231
2.5 1.5 5.0 90020-25-50-5 YK-A-5003-5233
2.5 2.0 41.0 90020-25-50-5-B YK-A-5003-5232
3.0 2.0 41.0 90020-30-50-5-B YK-A-5003-5234
4.0 2.0 41.0 90020-40-50-5 YK-A-5003-5235
5.0 3.0 41.0 90020-50-50-5-B YK-A-5003-5236

Ruby Stylus Tungsten Carbide Stem(图3)


Thread Size Ball Dia. Overall Length Stem Dia. Effective Length Order No. Model










M5
0.3





75
0.2 3.0 90020-03-75-5 YK-A-5003-5240
0.5 0.4 4.0 90020-05-75-5 YK-A-5003-5241
0.7 0.5 5.0 90020-07-75-5 YK-A-5003-5242
1.0 0.7 5.0 90020-10-75-5 YK-A-5003-5243
1.5 1.0 5.0 90020-15-75-5 YK-A-5003-5244
4.0 3.0 65.0 90020-40-75-5 YK-A-5003-5248
5.0 3.0 65.0 90020-50-75-5 YK-A-5003-5249
3.0




100
2.0 20.0 90020-30-100-5 YK-A-5003-5253
3.0 1.5 55.0 90020-30-100-5-B YK-A-5003-5254
4.0 2.0 20.0 90020-40-100-5 YK-A-5003-5255
4.0 3.0 50.0 90020-40-100-5-B YK-A-5003-5256
5.0 3.0 50.0 90020-50-100-5 YK-A-5003-5257
5.0 3.0 91.0 90020-50-100-5-B YK-A-5003-5258
